Features:

General Features:

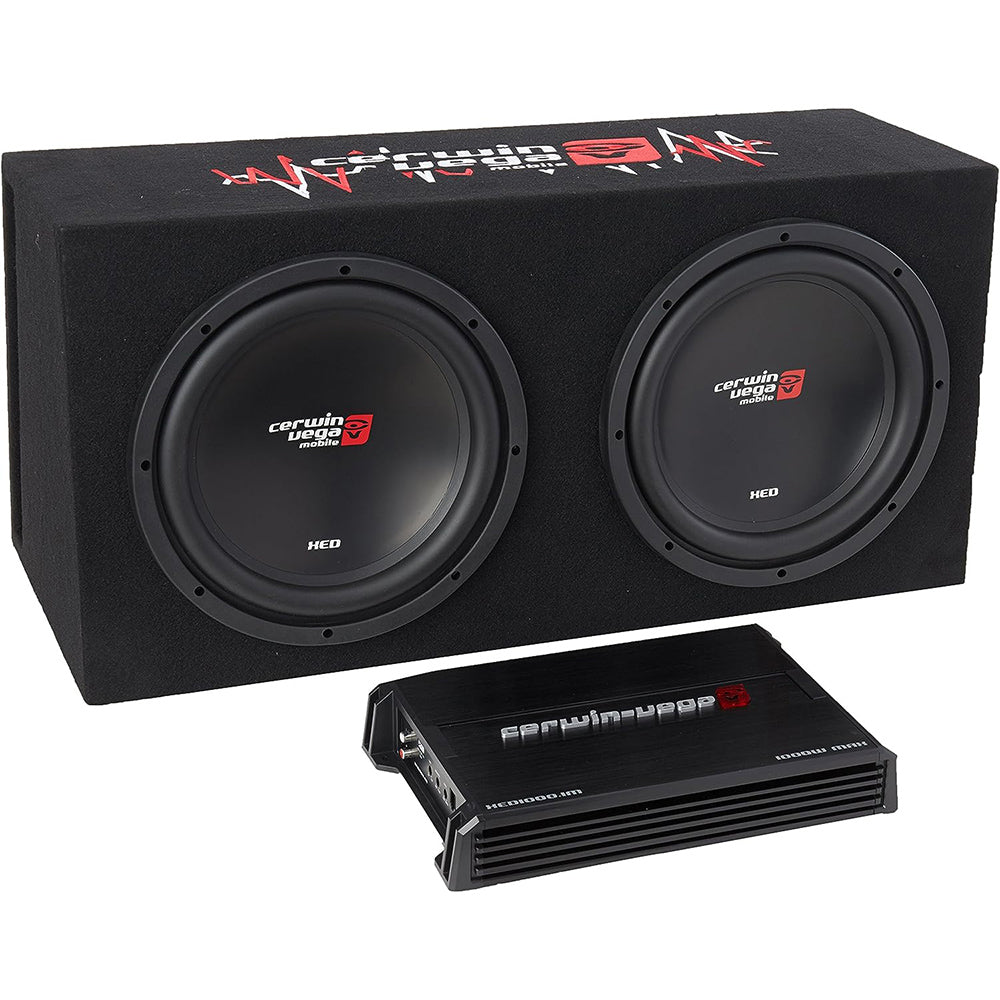

• Dual 12" Vented / Ported Loaded Subwoofer Enclosure with Built-In Amplifier
• Power Handling:
  • Peak: 1000 watts
  • RMS: 500 watts
• Final Impedance: 2-ohm
• Built-in Class D amplifier

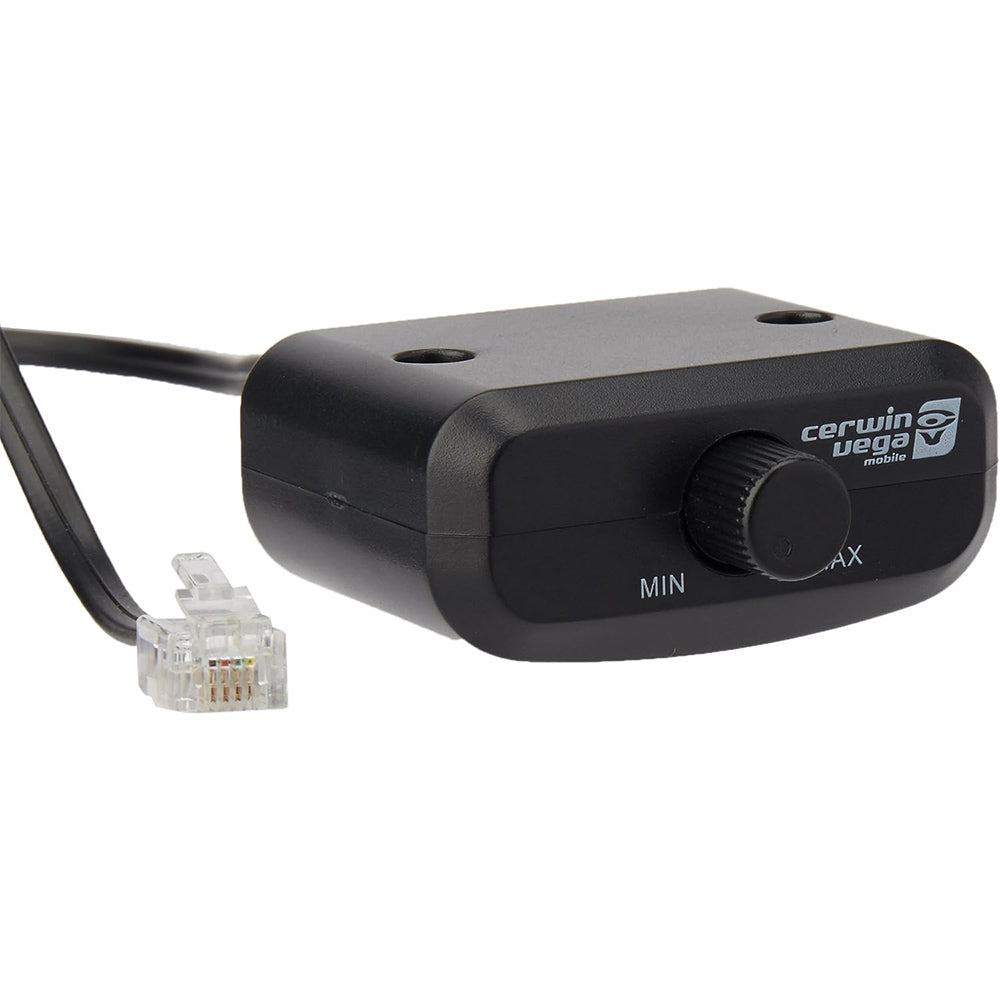

• Remote Bass Knob Included
• Vented / Ported Hatchback Style, Angled Back enclosure
• 4 AWG gauge power and ground wiring is recommended for installation
• Enclosure Dimensions: 9" TD x 15" BD x 30.625" W x 14.875" H

Subwoofer Features:

• 12" Subwoofer
• Parabolic Poly Cone
• High Roll Foam Surround
• Magnet Motor Structure
• XED Series
• Sensitivity: 85.5 dB

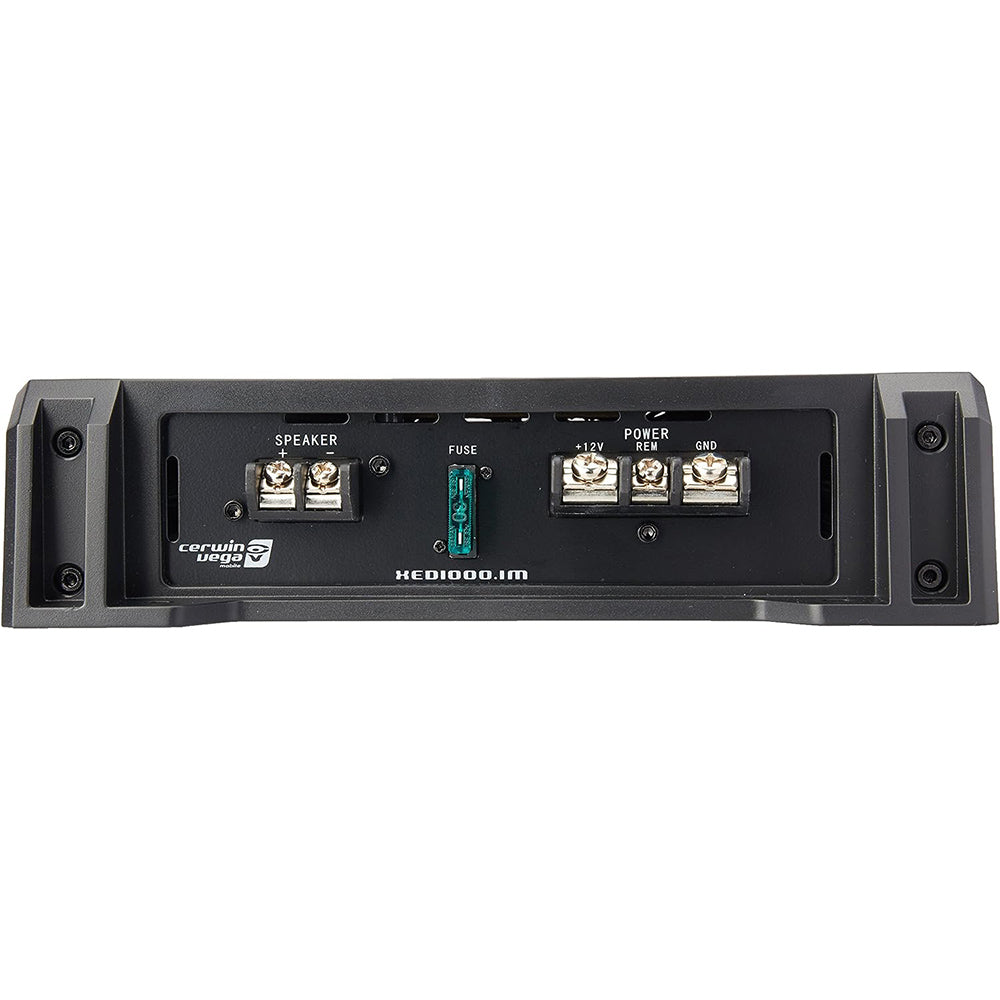

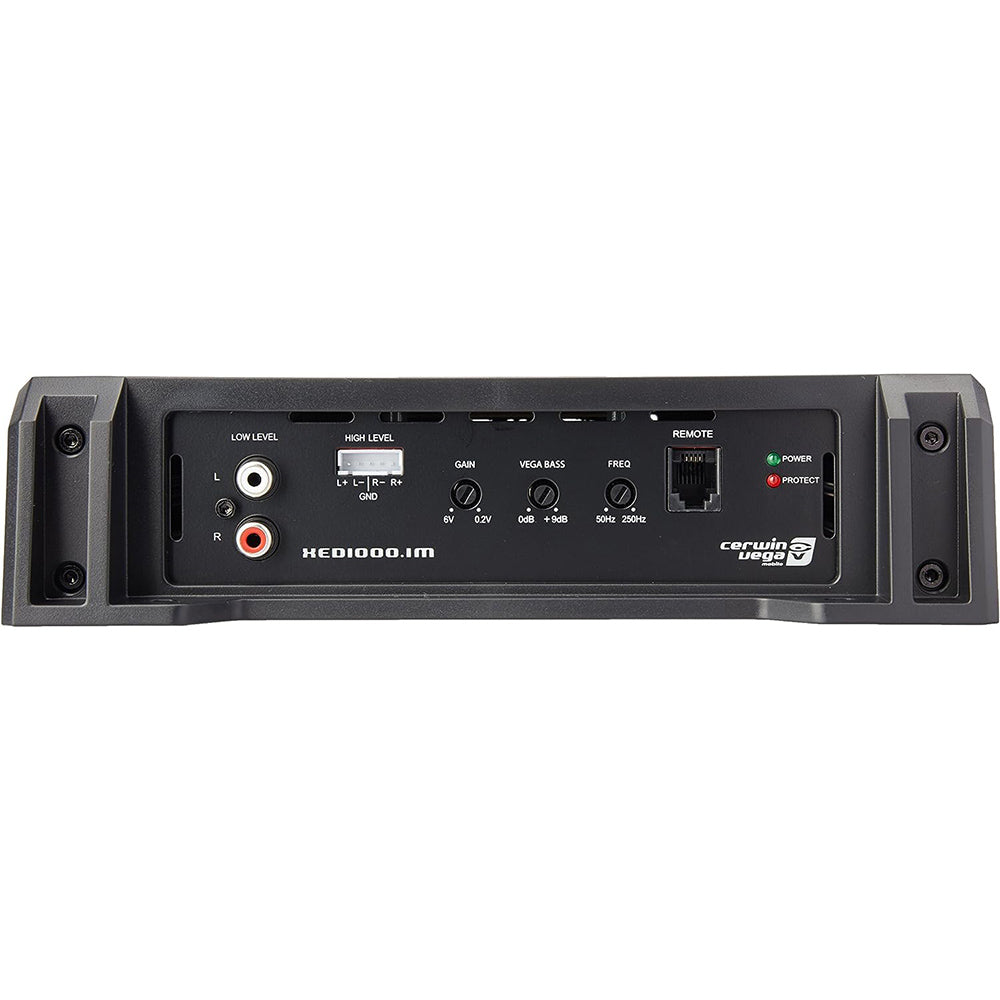

Amplifier Features:

• Class D Monoblock Amplifier
• Low-Pass Crossover Frequency: 50 - 250 Hz
• Bass Boost: 0 - 9 dB
• RCA Preamp Output: 1 pair
• Speaker-level (high-level) inputs
• Fuse Rating: 30A x 1

Enclosure Features:

• 12" Vented / Ported Enclosure
• Box Finish: Black Carpet

Specifications:

Subwoofer Amplifier Power Specifications:

• RMS Power @ 4 ohms: 175 watts x 1 channel
• RMS Power @ 2 ohms: 275 watts x 1 channel

Amplifier Specifications:

• Amplifier Class: D
• Number of Channels: 1 - Mono
• Maximum Input Gauge Size: 4 AWG
• THD at Rated RMS Power: 0.1%
• Speaker Level Inputs: Yes - with included adapter
• Preamp Outputs: 1 pair
• Built-in Crossover: Low-Pass (LP)
• Low-Pass Crossover Frequency: 50 - 250 Hz
• Signal-to-Noise Ratio: 101 dB
• Bass Boost: 0 - 9 dB
• Remote bass/level controller: Yes
• Fuse Rating: 30A x 1
• CEA-2031 Compliant: No

Subwoofer Specifications:

• Subwoofer Size: 12"
• RMS Power Handling: 150 watts
• Total RMS Power Handling: 500 watts
• Peak Power Handling: 1000 watts
• Total Peak Power Handling: 1000 watts
• Woofer Surround: High Roll Foam
• Woofer Composition: Parabolic Poly
• Sensitivity: 85.5 dB
• Subwoofer Design: Round / Circle

Enclosure Specifications:

• Box Type: Vented / Ported
• Number of Subs/Speakers: 2
• Box Style/Shape: Hatchback Style, Angled Back
• Depth: 9"
• Second Depth: 15"
• Wood Thickness: 3/4"
• Box Exterior Color: Black
• Box Finish: Carpet
• Final Wired Impedance: 2-ohm
