Features:

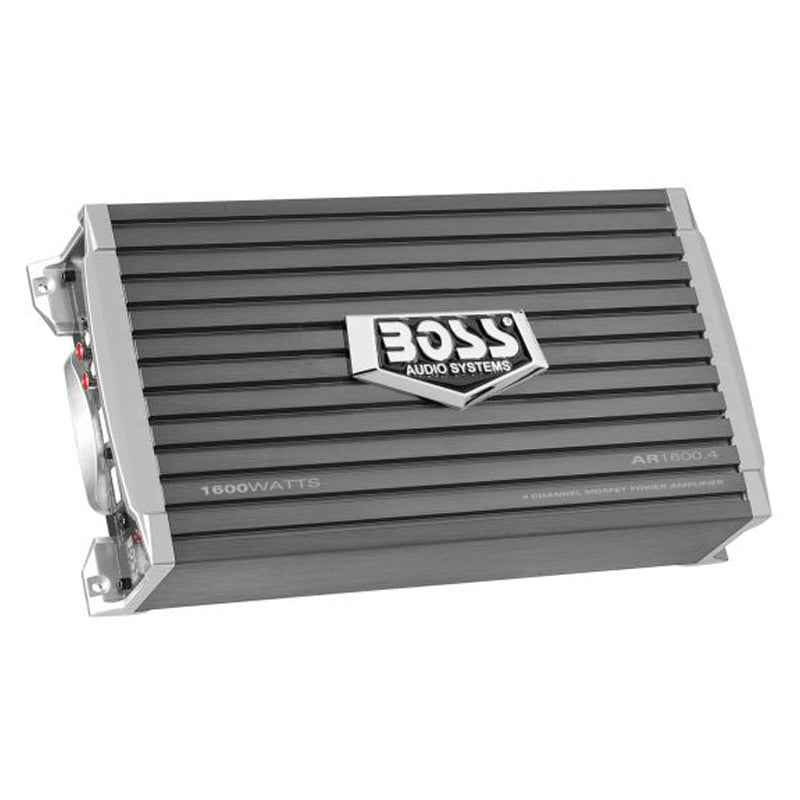

• 4-Channel ARMOR Series Class A/B Car Amplifier
• RMS Power Rating:
• 4 ohms: 160 watts x 4 chan.
• Max Power Rating
• 2 ohms: 400 watts x 4 chan.
• Bridged, 4 ohms: 800 watts x 2 chan.
• Pulse Width Modulated MOSFET power supply
• Wired remote bass level control included
• LED power (green) and protect (red) indicators
• Variable Bass Boost (0 to +18 dB bass boost at 50 Hz)
• Soft start turn-on
• 4/3/2 channel operation
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Heavy duty aluminum alloy heat-sink for extreme heat dissipation
• Nickel-plated RCA level inputs
• Nickel-plated screw terminals
• Input sensitivity:
• Low level: 125mV-5V
• High level: 250mV-10V
• Variable high-pass filter (200 Hz fixed, 24 dB/octave)
• Variable low-pass filter (35-160 Hz, 24 dB/octave)
• Damping factor: 125
• Frequency response: 9-50000 Hz
• Dimensions: 12-1/3"W x 5"D x 2-8/10"H

Specifications:

Power Specifications - Full Range Channels:

• RMS Power @ 4 ohms: 160 watts x 4 channels

Amplifier Specifications:

• Amplifier Series: Armor (Boss)
• Amplifier Class: AB
• Number of Channels: 4
• Total Peak Power Output: 1600 watts
• Maximum Input Gauge Size: 4 AWG
• Minimum Impedance Unbridged: 2 ohms
• Minimum Impedance Bridged: 4 ohms
• THD at Rated RMS Power: .01%
• Speaker Level Inputs: No
• Preamp Outputs: No
• Built-in Crossover: Low-Pass (LP), High-Pass (HP)
• High-Pass Crossover Frequency: 200 Fixed
• Low-Pass Crossover Frequency: 35 - 160 Hz
• Signal-to-Noise Ratio: 105 dB
• Channel Separation: 90 dB
• Bass Boost: 0 - 18 dB
• Bass/Gain Remote: Yes
• Fan Cooled: No
• Fuse Rating: 25A x 2
